For your events – and for the environment
Energy efficient ticketing

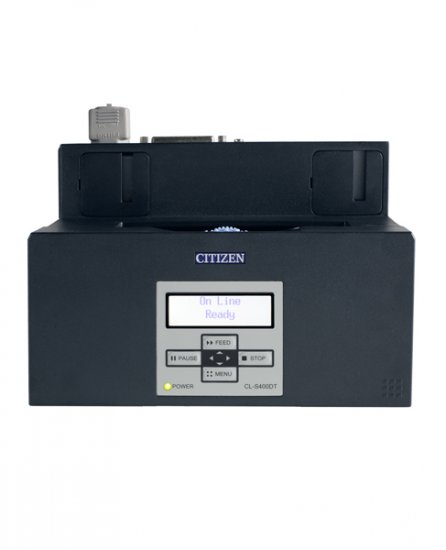

The CL-S400DT is designed to provide simple, cost-effective, high quality label printing on a range of media, making it particularly suitable for producing boarding passes, swing tags, festival and concert tickets. Meanwhile, the ENERGY STAR® rating of the CL-S400DT printer ensures that your printing process is always energy efficient and eco-friendly.
- Sleep and standby functions for energy efficiency
- Can accommodate extra size and thickness fanfold card paper media.
- Print speeds of up to six inches per second.
- Paper width: Variable paper width – 0.8 inches (19.5 mm) – 4.6 inches (118 mm)
- Paper load: Durable design – Citizen’s proven Hi-Lift™ all-metal mechanism
- Printing Speed: Fast print out – 6 inches per second (150 mm per second)
- Media support: Versatile Media Support – Fanfold media stacks and roll paper support
- Paper thickness: Paper thickness up to 0.250mm
- Display: 2-color LCD display enables intuitive operation
- Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
- Low space requirement – integrated power supply enables clean work station
- Internal power supply for reliability
- Media sensor:
- Adjustable media sensor
- Black mark sensor
- Label gap sensor
- Tear bar:
- Standard tear-bar for perforated tags
Printing Technology Direct Thermal Print Speed (maximum)
- 6 inches per second (150 mm/s)
Print Width (maximum) 4 inches (104 mm) Media Width (min to max) 0.5 to 4 inches (12.5 to 118 mm) Media Thickness (min to max) 63.5 to 254 µm Media Sensor Fully adjustable gap, notch and reflective black mark Media Length (min to max) 0.25 to 32 inches (6.35 to 812.8 mm) Roll Size (max), Core Size Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm) Case Hi-Open™ industrial ABS case with safe close Mechanism Hi-Lift™ metal mechanism with wide opening head Control panel 4 buttons, 16×2 LCD with 2-colour backlight and sophisticated menu configuration system Flash (Non-Volatile Memory) 8 MB total, 1 MB available for user Drivers and software Free-of-charge on CD with printer, including support for various platforms Size (W x D x H) and Weight
- 206 x 149 x 150mm, 2.68 Kg (excluding roll holder)
- Citizen Original Commands
- Datamax® I-Class™ & DMX400™
- Cross-Emulation™ – automatic switching between Zebra® ZPL-II® and Datamax® I-Class®, DMX400
- Zebra® ZPL-II®
- CBI Inside – BASIC interpreter for data stream processing
RAM (standard Memory) 16 MB total, 1 MB available for user Media type Roll or fanfold media; die-cut, continuous or perforated labels, tags, tickets. Inside or outside wound Cutter Guillotine type, Dealer Installable Number of Cuts 300,000 cuts on media 0.06-0.15mm; 100,000 cuts 0.15-0.25mm Resolution
- 203 dpi
Main Interface Dual Interface Serial (RS-232C), USB (version 2.0, full speed) Interface
- Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps
- Ethernet (10/100 BaseT)
- Parallel (IEEE 1284 compliant)
