Product Details

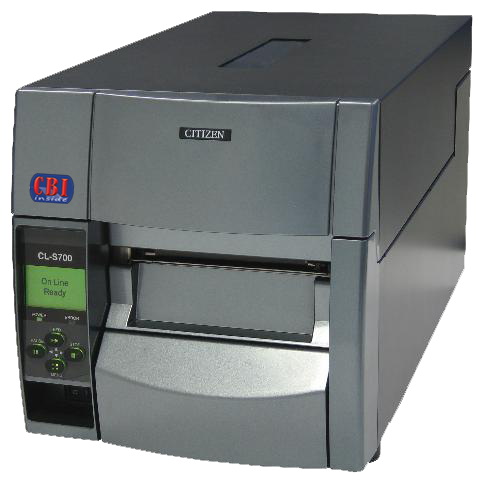

Citizen CL-S700IICBI / CL-S703IICBI

Healthcare printing with added speed and capacity

High-speed industrial printing

Our CL-S700II series is designed for ease of use; the metal mechanism opens vertically to a full 90° to allow for easy ribbon access, while integrated ribbon control and positioning support precision printing on even small or specialist media.  The CL-S700II also comes in a direct thermal only model.

  • CBI Inside
  • Capacity for ribbons up to 450 meters
  • Optional rewinder, peeler, cutter and 300 dpi
Category: Tag:

Share this product

Description

The CL-S700 series is built with durability and ease of access in mind.

Featuring a large, programmable front LCD control panel and a revolutionary Cross-Emulation™ control board that allows the printer to switch from Datamax® to Zebra® emulations at the touch of a button, the CL-S700 is designed for years of service.

Specifications

  • Model CL-S700
  • Printing method Thermal transfer & Direct thermal
  • Printing width 104 mm (4.1 inches) max.
  • Minimum print length 6.35 mm (0.25 inches)
  • Maximum print length 812 mm (32 inches)
  • Media width 25.4 – 118 mm (1 – 4.65 inches)
  • Printing speed 254 mm (10 inches) per second max.
  • Resolution 203 dpi / 300 dpi ( CL-S703)
  • Barcode type Code3of9, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int2 of 5 (Modulus 10-used interleaved 2 of 5), Plessey, Case Code, UPC 2 DIG ADD, UPC 5DIG ADD, Code93, ZIP, UCC/EAN128 (for K-MART), UCC/EAN128 RandomWeight, FIM, UPS Maxi Code, PDF417, Data Matrix, QR Code, Aztec, RSS
  • Paper Thickness: 0.0635 – 0.254 mm (0.0025 – 0.01 inches), Outer diameter: Max.ø 203 mm (8 inches) Paper core diameter: 38 – 76 mm (1.5 – 3 inches)
  • Ribbon Length: 450 m (1.476 feet), Width: 25.4 mm (1 inch), Outer diameter: 86.5 mm (3.4 inches), Core diameter: 25.4 mm (1 inch)
  • Interface: Parallel (IEEE1284 / compatible, Nibble, ECP mode), Serial (2400 4800 9600 19200 38400 57600 115200 bps), USB (FULL speed USB 1.1), Wired Ethernet (10-BASE-T / 100-BAWS TX) or Wireless LAN (Option),
  • Fonts 7 kinds of fixed pitch font (Overseas, English fonts and European fonts), OCR fonts OCR-A, OCR-B, Proportional fonts, True type rasterizer
  • Buffer size RAM memory: 16 Mb (User area: 1Mb), Flash (NV) memory: 4 Mb (User area: 1.0 Mb)
  • Indications and switches: LCD: 4-line back-light graphic type; LED: Power, Error; Buzzer: Alarms, errors, etc.; Operating panel keys: Pause, Feed, Stop, Menu; Head-up detection sensor: Detects head open; Power switch: Turns power ON and OFF
  • Options Auto-cutter, peeler, Ethernet, LAN interface board
  • Power source AC100 – 240V (-10% + 65), 3.0 – 1.5 V, 50 / 60Hz
  • Weight (approx.) 13.3 kg (29.3 lbs)
  • Outer dimensions (W × D × H) 255 x 490 x 265 mm (10 x 19.3 x 10.4 inches)
  • Reliability: Printhead 50 km
  • Safety standards UL, C-UL, FCC: class A, CCC, CE Marking

Warranty & Return

Warranty & RMA Information:

  • Warranty period varies by Manufacturer and Product Range
  • Contact us for Warranty specifics for your product
  • Contact our RMA department to requesting an RMA (310) 837-5888
  • The serial number of your defective product must be provided before we can process the RMA. Serial number can be found on the product label.
  • Upon submittal of an RMA request, an email will be sent to the email address provided with instructions on returning the defective product/s.
  • Shipping: The customer will only pay for incoming shipment Manufacturer will pay for return shipment (Standard ground service). Charges may apply for expedited shipping.
  • Repair turn around time varies by Manufacturer and Product Range.

Non-DOA Returns Policy – All products

  1. NO open box returns for non-DOA products. Product box must be clean and undamaged, with no marks of any kind. This includes writing, stamps, or shipping labels, i.e., written RMA numbers. All products must be double boxed.
  2. Original manufacturer’s packaging, both inside and outside must be used. Returns must be complete with all manuals, cables, warranty cards, static bags, etc., just as the customer received them.
  3. Customers have 30 days from date of invoice to request a non-DOA return. The RMA number issued is valid for 30 days from issue date.
  4. There will be a restocking fee on returns resulting from customer error.
  5. Non-DOA configured product may not be returned.
  6. Products that show signs of use are not returnable to Peripheral Resources as non-DOA.
  7. For customers on credit terms, credit will be applied to your account when the product is received by Peripheral Resources.
  8. Customer is responsible for freight costs when returning product.

DOA Returns Policy

  1. Refer to manufacturer’s warranties and returns policies.
  2. If the product is tested and the problem is not duplicated, there may be a No Problem Found fee charged to the customer.
  3. For customers on credit terms, credit will be applied to your account when the product is received by Peripheral Resources. Replacement product will be sent once DOA item has been received.
  4. For customers on C.O.D. or credit card status, replacement product will be sent upon receipt of product by Peripheral Resources. If desired, we will send replacement product at your normal C.O.D. or credit card status and you can request a refund or credit to your card when Peripheral Resources receives the returned product.

Downloads

Barcode Printer Driver
Barcode Printer Utility
User Manual
Product Brochure
