DENSO ADC QM30
QM30 New!
A New Ultra-Compact Scanner for Tiny Spaces
Description
DENSO WAVE’s Smallest and Lightest Scanner Ever

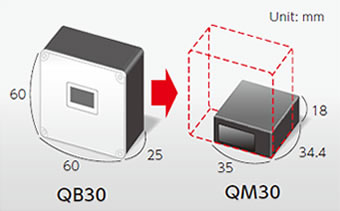

The QM30 series is equipped with the newest module developed in-house by DENSO WAVE. The new module makes it possible to reduce the scanning lens surface area and shrinks the unit’s volume to about 1/4* that of the previous product.
*Compared to QB30
Compact Dimensions Ideal for Incorporation into Various Devices

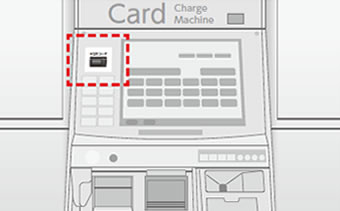

At just 3.5 cm wide, the unit is ideal for incorporating into devices that couldn’t otherwise accommodate a scanner. The QM30 helps design smaller scanner modules for space-saving installations.
Supports New High-security QR Code

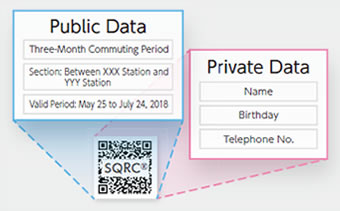

The QM30 supports SQRC with its enhanced security features and can be used for authenticity verification of high-security member ID cards and similar applications. The Q M 30 al so scans QR co des displayed on smartphones for payment purposes.
Specifications
| Model | QM30-SS | QM30-SU | ||
|---|---|---|---|---|
| Scanner section | Readable codes | 2D code | QR Code, Micro QR Code, SQRC, DataMatrix, PDF417, Micro PDF417, Aztec | |
| Barcode | EAN-13/8, UPC-A/E, UPC/EAN (Add-on embedded), Interleaved 2 of 5, Codabar(NW-7), CODE39, CODE93, CODE128 (EAN-128), GS1 DataBar (RSS) | |||
| Minimum resolution | 2D code | 0.167mm | ||
| Barcode | 0.125mm | |||
| Image sensor | 480,000-pixel CMOS image sensor | |||
| Lighting | Red LED | |||
| Marker | Red LED | |||
| Field of view | Horizontal: 40°, vertical: 30° | |||
| LCD code | Supported | |||
| PCS value | 0.30 or higher | |||
| Skew angle | 360° | |||
| Elevation angle, inclination angle | ±50° | |||
| Communication interface | Method | Serial (TTL level) | USB 2.0 compliant (COM, HID) | |
| Connector | 8-pin board to wire connector | USB connector, micro USB | ||
| Power, current consumption | 5 VDC ±5 %, 500 mA (scanning), 180 mA (standby) | |||
| Environmental performance | Operating humidity | 10 to 90 % RH (no condensation or freezing) | ||
| Operating temperature | -10～50℃ | |||
| Protection rating | – | |||
| Drop resistance | – | |||
| External dimensions | 35.0(W)×34.4(L)×18.0(H)[mm] | |||
| Weight | Approx. 18 g | |||
| Color | Black | |||
External dimensions
Scanning range and field of view
<
- Scanner specifications are values obtained under an ambient light intensity of 500 lx or lower.
- Depending on light source position, angle to the label surface, and other factors, specular reflections may prevent scanning in certain cases.
- Close-distance scanning may be restricted in certain cases, depending on scanning field of view.
