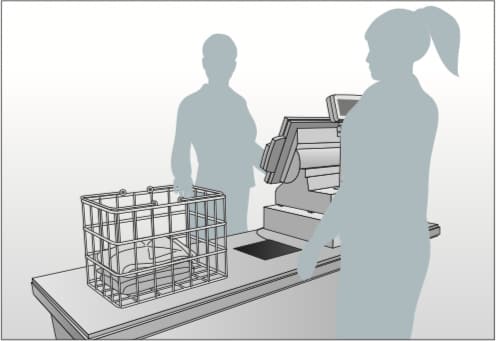

No need to manually read RF tags one after another. Checkout procedure can be completed quickly by just scanning products on the counter.

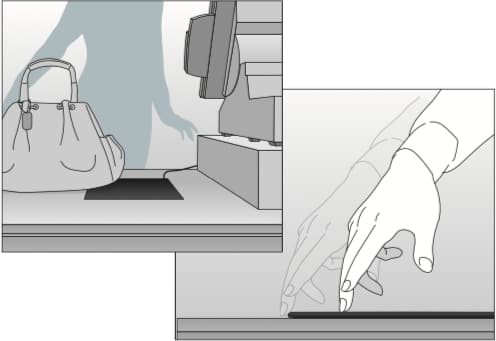

Ultra-thin antenna avoids catching product and increases usable workspace
The combination of a small controller and a thin antenna eliminates problems in finding an installation location. A dedicated antenna fixture, which is useful in installing the antenna, is also offered.

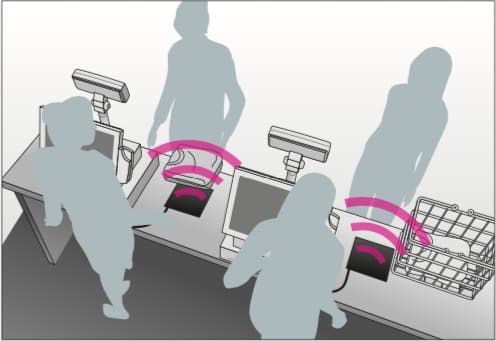

No need to worry about reading products on adjacent checkout counters
The communication range is approximately 2.6 feet, which is ideal for the environment for POS registers. To prevent reading RF tags of products on adjacent checkout counters, the communication range can be adjusted according to needs.
Specifications
Model
(RS-232C/USB Model) UR21-MS-01*1
Scanner RFID
Readable and recordable RF tag
ISO/IEC18000-63 TypeC(EPCglobal Class1 Gen2) -supported Tag
Frequency
USA/CANADA (915.25-927.5 MHz)
Transmission output
USA/CANADA (21dBmEIRP)
Modulation method
PR-ASK
Transmission rate
40 kbps
Scanning distance*2
0–1300 mm (Avery Dennison AD-237r6, AD-229r6)
Output adjustment
5–23 dBm
LED indication function
PW: power supply (green), COM (red), ANT1 (orange), ANT2 (orange) 4 total
Interface
RS-232C (D-SUB 9P), USB (mini USB B Type)
Power
Power supply
Custom AC adapter (100 V)
Current consumption
1300 mA MAX (excluding inrush current)
Operating temperature
0–40°C
Dimensions
Controller: 90 × 108.5 × 31 mm / Antenna: 200 × 200 × 5 mm
Weight
Controller: Approx.130 g / Antenna: Approx. 250 g
Do not connect antennas, controllers, and cables that are not specified by DENSO Wave. The use of such antennas, controllers, and cables may result in violation of the Radio Act; the user may be punished under the act.
The communication distance differs depending on the target tag. The communication distance is subject to change depending on the conditions in the actual environment.
Appearance and specifications are subject to change without prior notice. Description stated in this catalog is as of December, 2016.
External dimensions
