Product Details
DENSO ADC SP1
SP1
Scanning Speed 700scans/second
Scanning Distance Approx. 8m
For World Class Inventory-taking
Description

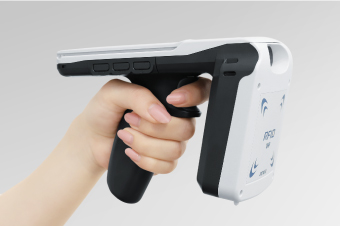

World leading scanning performance(1)
Features our proprietary antenna that switches automatically between horizontal and vertical polarization. Achieves outstanding scanning speeds of 700 scans per second and scanning distance of up to approximately 8 m. Scans tags even when not all facing in the same direction. Dramatically improves working efficiency, enabling inventory jobs to be completed rapidly.
(According to Denso Wave data as of September 2018.)

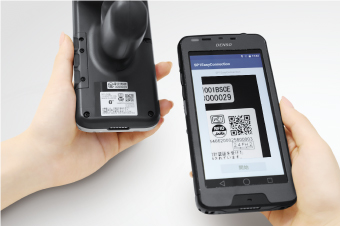

Simple setup for easy transition between tasks
Easily connected by scanning QR code® on SP1 unit with the device connected. Devices can be quickly paired using Bluetooth®, for easy transition between tasks. Even if the pairing is disconnected during work, the scanner includes automatic re-connection function and backup memory. The scanned data temporarily saved will be transmitted when the scanner is re-connected.
RFID using any smart device
Supports both Android™ and iOS. All you need is a smartphone or tablet for RFID.
・Global support available in over 40 countries worldwide.
・High-quality product made in Japan.
- 1.Scanning speed is a reference value and varies depending on the actual operating environment. Scanning distance is a reference value and varies depending on the actual operating environment. Communication distance varies depending on the actual tags. Evaluations are based on the Avery Dennison AD-229r6.
Specifications
| Model | SP1-QUBi | ||||
|---|---|---|---|---|---|
| Scanning unit | RFID | Supported RF tag | ISO/IEC18000-63 TypeC（EPCglobal Class1 Gen2）-compatible Tags | ||
| Frequency | See the following table. | ||||
| Scanning speed(1) | 700scans/second | ||||
| Scanning distance(1) | Approx.8m | ||||
| Output adjustment | 10dBm to 30dBm | ||||
| Scanner | Type | Area sensor | |||
| Readable codes | 2D Codes | QR code, Micro QR Code, SQRC, PDF417, Micro PDF417, MaxiCode, DataMatrix（ECC200）, GS1 DataBar Composite（EAN.UCC Composite） | |||
| 1D Codes | EAN-13/-8（JAN-13/-8）, UPC-A/-E、UPC/EAN（With add-on）, Interleaved 2 of 5, CODABAR（NW-7）, CODE39、CODE93、CODE128, GS1-128（EAN-128）, GS1 DataBar（RSS） | ||||
| Minimum resolution | 2D Codes | 0.167mm | |||
| 1D Codes | 0.125mm | ||||
| PCS value | 0.3 or greafter | ||||
| Elevation/tilt angle | ±50° | ||||
| Scan confirmation | Blue/red 2-color LED, buzzer | ||||
| Transmitter unit | Bluetooth® | Bluetooth Ver2.1+EDR Standard Class2 | |||
| Profile | SPP、SPP(iOS) | ||||
| cradle | USB | ||||
| Power supply | Main battery | Lithium-ion battery | |||
| Operating time(2) | Standard battery | Approx. 4 hours | |||
| High-capacity battery | Approx. 8 hours | ||||
| Internal memory | 80,000 RFID tags | ||||
| Environmental performance | Operating temperature(3) | -20 °C to +40 °C | |||
| Protection class | IP54 | ||||
| Drop-resistant strength(4) | 30 drops from 1.2 m onto concrete (5 times on each of 6 faces), 1.5 m | ||||
| EMC Standard | VCCI Class A | ||||
| Weight | Approx. 400 g (with standard battery);approx. 450 g (with high-capacity battery) | ||||
- 1.Function settings may be subject to restrictions in some countries. Scanning speeds and read distances are reference values. Actual scanning speeds and read distances will depend on the environment. The maximum read range depends on the tag to be scanned. Evaluation condition = Avery Dennison AD-229r6.
- 2.These operating times are reference values measured under room temperature and other conditions set by our company. Actual operating times depend on working conditions. Conditions set by our company: Power Save Mode 2, RF Tag Continuous Read Mode 1, LOW buzzer level.
- 3.The temperature rises from 0 to 40°C during charging. When the product is used at ambient temperatures of -10°C or below, turn on the product and operate briefly at normal room temperature before taking the product to the worksite; do not turn off. Due to battery characteristics, operations may be subject to certain limitations, such as significantly decreased operating time, under low temperature conditions (0°C or lower). If ambient temperatures are very low, check for normal function before using the product.
- 4.This is a test value obtained under room temperature conditions. It is not a guaranteed value.
