DENSO ADC AT20Q / AT21Q
- Logging function to store parameter setup in a file – Especially when multiple scanners are being setup at one time, the setup file can be accessed to greatly reduce setting time
- Output in MS-Word format – Setup parameters and input barcodes can be created and stored in MS-Word file.
- Firmware update support – At the time of product upgrade, your scanner can be updated with a new firmware available at DENSO website.
- One-step setup of parameters
- Scanner setup can be easily managed from your PC
- Setup codes can be scanned to minimize setting time
- Scanner setup can be easily managed from your PC
Description
Antibacterial |
||
Disinfectant Ready |
![]() ![]() |
By using antibacterial and weather-resistant materials for the main unit, propagation of unwanted bacteria and discoloration are prevented. This product can be used with peace of mind in the fields of medicine and food. |
Scanning Performance |
||
High-speed shutter and readability from any direction (360 degree) |
![]() ![]() |
You can improve your work efficiency by the high-speed shutter that enables operation not affected by camera shake, and readability from any direction. |
Wide-angle scanning, improved readability. |
![]() ![]() |
The number of horizontal pixels is increased and reading algorithms improved. Readability for wide barcodes used for public utility bills, medical bills, etc. is improved. |
Improved resolution useful for various businesses. |
![]() ![]() |
The newly developed reading engine enabled 0.125 mm resolution for 1D barcodes and 0.167 mm for 2D barcodes. The scanner can be used for a wide range of businesses such as operations of plants, hospitals and shops. |
Multi-row barcodes can be read at one time. |
![]() ![]() |
The scanner can read two-row barcodes of books and up to three-row other barcodes. Decrease in the reading frequency can lead to drastic reduction in working hours. |
Useful Functions |
||
More efficient, more convenientPossible to read barcodes on mobile phone LCD screen |
![]() ![]() |
The newly developed unique LED illumination control function is incorporated in the scanner to suppress specular reflection. The device can quickly read barcodes on mobile phone LCD screens |
Eye-friendly LED marker |
![]() ![]() |
In addition to the laser guide marker-type model, which is already on the market, the LED marker-type model that indicates the scanning area has been released. The scanner considers the safety of eyes, ideal for the use in service industries such as supermarkets |
Easy-to-use image capture function |
![]() ![]() |
The scanner can read not only barcodes but also take pictures. The device enables you to easily read even small characters. This function is useful particularly for logistics and transportation industries dealing with bills.(1)
|
Incorporated with many user-friendly and unique functions of DENSO |
||

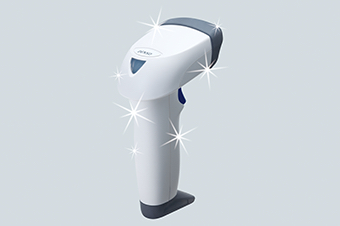

The most lightweight device (approx. 110 g) in the class(1)Ability to withstand a 6.5 feet drop impact |
![]() ![]() |
In addition to the lightweight body, impact buffer materials and a highly durable case are used to possess the ability to withstand a 2-meter drop impact, the highest standard in the class. The device can also resist 100,000 drops from the height of 20 cm (7.9 inches), considering more ordinary troubles during actual use |
Smooth automatic scanning by attaching the scanner to a hands-free stand |
![]() ![]() |
The scanner can be used by holding it or by attaching it to a hands-free stand for scanning. You can use the scanner by setting it in the hands-free stand, or by holding the scanner when scanning a label attached to a large item |
Configuration Software at Time of Introduction |
||
Configuration Method 1 |
![]() ![]() |
Upload all parameters at once as a batch operation from a PC via the COM port |
Configuration Method 2 |
![]() ![]() |
Using the configuration software to output a batch configuration barcode, you can scan in all the parameters in one go with the AT20Q |
Comprehensive functionality that broadens the possibilities for scanning |
||
Auto-sense mode |
![]() ![]() |
Because the AT20Q automatically detects when a label is placed in view and begins to scan it, it can really demonstrate its strengths in the workplace when attached to a stand for operation |
Data verifying function |
![]() ![]() |

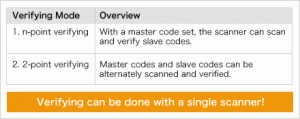

The AT20Q includes Verifying functional that registers a master code and compares it to the scanning target |
Data editing functions |
![]() ![]() |
It accommodates simple programming functionality (ADF scripting), permitting many different operation control possibilities like data truncating and sorting |
Command control |
![]() ![]() |
The operational status of the scanner can be controlled with commands from a superordinate device. |
Specifications
LED marker type | LED marker type | |||||||
---|---|---|---|---|---|---|---|---|
AT20Q-SM(White) | AT21Q-SM(Black) | AT21Q-HM(Black) | ||||||
RS-232C model | USB model | RS-232C model | USB model | RS-232C model | USB model | |||
Type | AT20Q-SM(R) | AT20Q-SM(U) | AT21Q-SM(R) | AT21Q-SM(U) | AT21Q-HM(R) | AT21Q-HM(U) | ||
Scanner | Method | Area sensor | ||||||
Readable codes |
2D Code | QR Code, Micro QR Code, SQRC, iQR, DataMatrix(ECC200), PDF417, MicroPDF417, Maxi code, Aztec, GS1 DataBar Composite(EAN.UCC Composite) | ||||||
Barcode | EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with add-on), Interleaved 2of5(ITF), Standard 2of5(STF),CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), GS1 DataBar(RSS) | |||||||
Minimum resolution |
2D code | 0.167mm | 0.125mm | |||||
Barcode | 0.125mm | 0.10mm | ||||||
Marker | LED marker | |||||||
Angle | ±50° | |||||||
Skew angle | 360° | |||||||
Image capture | BMP, JPEG, thumbnail view | |||||||
Scanning confirmation |
Confirmation LED(Blue, Green, Red), Buzzer(with 3-level volume control and 3-level tone control) | |||||||
Communication interface |
Method | RS-232C | USB(COM、HID)(1) | RS-232C | USB(COM、HID)(1) | RS-232C | USB(COM、HID)(1) | |
Connector | Dsub-9S | USB Connector(A type) | Dsub-9S | USB Connector(A type) | Dsub-9S | USB Connector(A type) | ||
Cable | 2m straight cable | |||||||
Power | Exclusive AC adapter | Supplied from the connection target | Exclusive AC adapter | Supplied from the connection target | Exclusive AC adapter | Supplied from the connection target | ||
Supplied from the connection target | Supplied from the connection target | Supplied from the connection target | ||||||
Environment requirements |
Dust-proof, Drip-proof |
IP42 | ||||||
Drop impact resistance(2) |
2.0m/0.2m x 100,000 times | |||||||
Operating humidity |
10~90% RH(without dews) | |||||||
Operating temperature |
-5~50℃ | |||||||
Operating illumination |
0 to 10,000 lx (Fluorescent lamp in daytime) | |||||||
Weight (excl. cable) | Approx. 110 g |
Area guide marker type | Area guide marker type | ||||||
---|---|---|---|---|---|---|---|
AT25Q-SM(White) | AT26Q-SM(Black) | AT27Q-SB | |||||
RS-232C model | USB model | RS-232C model | USB model | Bluetooth model | |||
Type | AT25Q-SM(R) | AT25Q-SM(U) | AT26Q-SM(R) | AT26Q-SM(U) | AT27Q-SB(3) | ||
Scanner | Method | Area sensor | |||||
Readable codes |
2D Code | QR Code, Micro QR Code, SQRC, iQR, DataMatrix(ECC200), PDF417, MicroPDF417, Maxi code, Aztec, GS1 DataBar Composite(EAN.UCC Composite) | |||||
Barcode | EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with add-on), Interleaved 2of5(ITF), Standard 2of5(STF),CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), GS1 DataBar(RSS) | ||||||
Minimum resolution |
2D code | 0.167mm | |||||
Barcode | 0.125mm | ||||||
Marker | Area guide marker | ||||||
Angle | ±50° | ||||||
Skew angle | 360° | ||||||
Image capture | BMP, JPEG, thumbnail view | ||||||
Scanning confirmation |
Confirmation LED(Blue, Green, Red), Buzzer(with 3-level volume control and 3-level tone control) | Confirmation LED(Blue,Green, Red, Orange), Buzzer (with 3-level volume control and 3-level tone control) |
|||||
Communication interface |
Method | RS-232C | USB(COM、HID)(1) | RS-232C | USB(COM、HID)(1) | Bluetooth Ver.2.1+EDR based class2 | |
Connector | Dsub-9S | USB Connector(A type) | Dsub-9S | USB Connector(A type) | – | ||
Cable | 2m straight cable | – | |||||
Power | Exclusive AC adapter | Supplied from the connection target | Exclusive AC adapter | Supplied from the connection target | Exclusive battery (SB-10L) |
||
Supplied from the connection target | Supplied from the connection target | ||||||
Environment requirements |
Dust-proof, Drip-proof |
IP42 | IP54 | ||||
Drop impact resistance(2) |
2.0m/0.2m x 100,000 times | 1.8 m hight over a concrete floor with each of 6 sides of the enclosure facing down |
|||||
Operating humidity |
10~90% RH(without dews) | ||||||
Operating temperature |
-5~50℃ | ||||||
Operating illumination |
0 to 10,000 lx (Fluorescent lamp in daytime) | ||||||
Weight (excl. cable) | Approx. 110 g | Approx. 200 g |
- 1. Two methods are supported: a USB keyboard interface and a USB-COM interface. The factory default is a USB-COM interface.
- 2. These are test values, but not guaranteed values.
- 3. External case of the Bluetooth model is a different with the wired model.
