Product Details

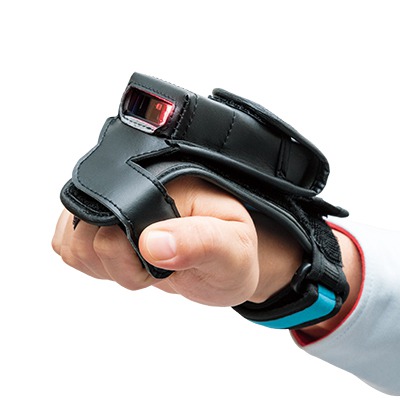

DENSO ADC SF1
Tough. Clean. Fast.
Data entry to smart devices is now easier, quicker and more accurate!
Description

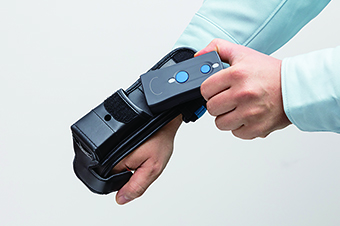

Ideal for order picking and repeat scanning
Newly developed switching technology enables the contactless connection between a scanner and an external trigger. The wireless structure avoids the risk of disconnection and breakage. If a scanner is removed from the attachment, it can operate as a mobile scanner.
Wearable attachment with unique material ensures comfortable operation anytime
Attachment base is made of highly moisture-absorbing material that reduces friction on skin and is easily washable for a clean and comfortable fit.
※The scanner holder is not washable. Please read the enclosed operator’s guide.

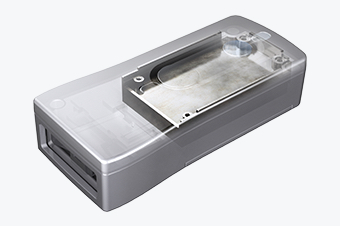

Lightweight magnesium frame provides top-notch drop impact resistance
The durable magnesium frame is perfect for tough workplaces and withstands a height drop test of up to 2.5 m, all while remaining lightweight and comfortable.
Specifications
-
Type 2D code model SF1-QBi-T Case color Dark gray Scanning
modeMode Area sensor Readable
codes2D codes QR Code, SQRC, Micro QR code, DataMatrix(ECC200), PDF417, MicroPDF417, Maxicode, Aztec, GS1 Composite 1D codes EAN-13/8, UPC-A/E, UPC/EAN（with add-on）, Interleaved 2 of 5, Standard 2 of 5, Codabar（NW-7）, CODE39, CODE93, CODE128, GS1-128（EAN-128）, GS1 DataBar（RSS） Readable
codes2D codes 0.167 mm 1D codes 0.125 mm PCS value 0.3 min Angle ±50° Scanning confirmation Confirmation LEDs (blue, green, red), Beeper, Vibrator Communication interface Method Bluetooth Ver.2.1＋EDR-based class 2 Profile SPP、HID、SPP（for iOS） Power Source Lithium ion battery Charging time 2.5 hours Operating time(1) 24 hours Environment requirements Operating temperature(2) -20℃ to 50℃ Operating humidity 10 to 90％ RH(No dew condensation and freezing) Degree of protection IP54 Drop impact resistance(3) 2.5m, １.5ｍ×100 times, Tumbling test：0.5m×3,000 times Operating illuminance 10,000 lux max.(Under daylight fluorescent light) Weight Approx. 80g Trigger switch Button type or touch type iOS supporting models Made for iPhone X , iPhone 8 , iPhone 8 Plus , iPad Pro 12.9-inch (2nd generation) , iPad Pro 10.5-inch , iPad (5th generation) , iPod touch (6th generation) - 1. When one reading pass over a 5-second period.
- 2. It becomes 0℃ to 40℃ when charging.
- 3. These are test values, but not guaranteed values.
