Product Details

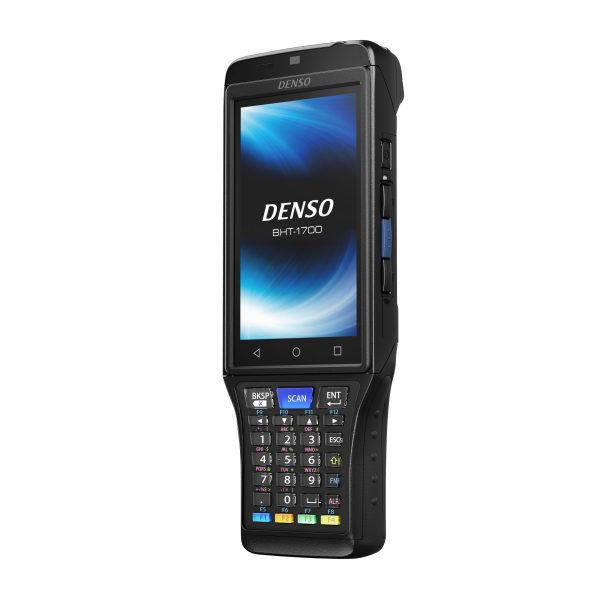

DENSO ADC BHT-1700

BHT-1700

Android™ 7.1.2
Model equipped with a numeric keypad to increase one-handed operability

mera.

Category: Tag:

Share this product

Description

Creation of new value in addition to Higher Operational Efficiency

The combination of AndroidTM(1), 4G LTE, and Google Mobile Service(2) integrated with a range of application software creates unlimited new value in addition to increase in existing operations efficiency.

Robust Enough to Keep Operations on Track

Withstands Drops from Height of 2.5m

The terminals are built to be robust, smart terminals with lightweight stylish design. The pursuit of a robust yet lightweight design has resulted in terminals that do not need unnecessary components.

Strong Yet Lightweight Materials

The frame is made from a highly rigid, yet light magnesium alloy while the corners of the main unit, which are most likely to be subject to damage, have a more optimal design. The exterior jacket with few seems is made from durable polycarbonate and protects the terminal from dust and water droplets.

Protection Level as High as IP67 Achieved by Advanced Sealing Technology

For higher protection against dust and water droplets, high-performance sealing materials developed by DENSO for manufacturing of automotive components are adopted for the numeric keypad, side key, battery cover and other components to ensure the correct functioning of the terminal even under unfavorable conditions.

Tempered Glass Provides Strength and Visibility

For the display , chemically strengthen Dragontrail®(3)PRO glass panel is adopted to protect the screen from external pressure and drop-related shocks. The display is also very hard and highly resistant to scratches, ensuring the terminal’s usability even in punishing environments.

Superior Reading Performance Realizes High Efficiency

New, More Powerful Reading Module

A new module which can read codes at a distance of 35mm. The module will not read codes by mistake and can read even stained, blurred or distorted codes instantly, eliminating the need for repeated scanning.

Exclusive CPU for Stable Scanning Performance

In addition to the quad-core CPU for running application software, an exclusive CPU is mounted to the terminal for reading and decoding. This allows multiple high-load applications to be run on the terminal while the scanner is reading codes smoothly and promptly.

The Long-Range Terminal: A Scanning Distance is 10m

Even workers who are on a forklift can easily scan a code attached to an item on a shelf, substantially improving operational efficiency. The terminal is the first handheld terminal in the world to be equipped with four lamps (conventional products have only two) for ease of scanning in warehouses and other poorly lit places.

Easy to Use for On-site Workers

Check the Terminal’s Screen While Scanning

Based on our experience at a wide-range of worksites, DENSO WAVE developed the uniquely angled scan head for the reading module.

Customizable for Better Use

In addition to the trigger key, multiple magic keys are arranged on the side of the terminal for flexible key assignment of frequently-used functions. “Touch Trigger” can also be placed in an easy-to-tap position on the screen.

Touch Panel Operable with Gloves on

The capacitance multi-touch panel is intended for smooth operation. The user can readily operate the touch panel even while wearing gloves, thanks to the technology adopted to give the screen high sensitivity.

Numeric Keypad to Increase One-handed Operations

For one-handed operations, frequently-used buttons are placed within easy reach to the thumb. The dome-shaped keys allow the user to press the buttons precisely, even whit wearing gloves.

Central Management of BHT Devices Across the World with Software(4)

The BHT DMS(Device Management System) is composed of a client application designed to run on terminal and a management application on a PC. The DMS is used to manage the terminal, update the application software and OS, transmit master files and others, and collect result files. Central management based on a network will reduce the burden imposed on the system administrator.

  1. 1. Android is a trademark of Google LLC.
  2. 2. Google Mobile Service is a software package contains application and services from Google.
  3. 3. 「Dragontrail®」is a registered trademark of Asahi Glass CO., Ltd
  4. 4. The software is available for a fee

Specifications

  • 2D code model 2D code long model Barcode model
    Model Wireless LAN Wireless LAN+Wireless WAN Wireless LAN Wireless LAN
    BHT-1700QWB-1 BHT-1700QWB-2 BHT-1700QWBG-1 BHT-1700QWBG-2 BHT-1700QLWB-P BHT-1700BWB-1
    OS AndroidTM7.1.2
    CPU 1.3GHz Quad-core
    Memory RAM 2 GB
    Flash memory 16 GB
    Display Number of dots(1) 4.0inch WVGA(480×800 dots)
    Display system Liquid crystal dot matrix display(Color)
    Backlight White LED
    Scanner Reading system Area sensor Auto focus
    Area sensor
    Advanced scan plus(CCD)
    Readable codes 2D codes QR Code®、Micro QR Code、SQRC®、iQR Code、PDF417、Micro PDF417、MaxiCode、DataMatrix(ECC200)、GS1 Composite QRコード®、PDF417、
    Micro PDF417、MaxiCode、DataMatrix(ECC200)、
    GS1 Composite
    ̶
    Barcodes EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with add-on)、Interleaved 2 of 5(ITF)、Standard 2 of 5(STF)、Codabar(NW-7)、CODE39、CODE93、CODE128、GS1-128(EAN-128)、GS1 DataBar(RSS)
    Minimum resolution 2D Codes 0.167 mm 0.25 mm ̶
    Barcodes 0.125 mm 0.15 mm 0.125 mm
    Marker Area guide marker
    Scan confirmation Blue LED、Speaker、Vibelator
    Keypad Keys 31keys (2)+3 trigger keys 31 keys(2)+4 trigger keys 31 keys(2)+3 trigger keys
    Touch screen Dragontrail® PRO
    Network Wireless LAN(3) Compatible standards IEEE802.11a/b/g/n compliant
    Frequency band IEEE802.11a/n:5.2GHz、5.3GHz、5.6GHz、IEEE802.11b/g/n:2.4GHz
    Transmission distance(4) IEEE802.11a: Indoors=approx.50 m、IEEE802.11b/g/n: Indoors=approx.75 m、Outdoors=approx.200 m
    Security Encryption:WEP(40/128)/TKIP/AES WPA authentication:WPA/WPA2 User authentication:PSK/EAP-TLS/PEAP
    Wireless WAN compatible standards ̶ 4G LTE/3G/GSM、VoLTE ̶
    GPS ̶ A-GPS/GLONASS ̶
    Bluetooth® Bluetooth®Ver4.1+EDR/LE(Compatible authentication Profile:GAP/SDAP/HSP/SPP/GOEP/OPP/HFP(AG1.5)/PAN/A2DP/AVRCP/GAVDP/HID/PBAP/HOGP/MAP/GATT)
    Card slot Memory Micro SDHC/SDXC(~128GB)
    SIM Nano SIM ×2
    Power supply Main battery Lithium-ion battery
    Operating time(5) Standard battery 22 hours(6) 12 hours(7) 20 hours 22 hours(6)
    High-capacity battery 33 hours(6) 18 hours(7) 30 hours 33 hours(6)
    NFC(8) ̶ Yes ̶ Yes ̶
    Camera ̶ 8MP auto focus ̶ 8MP auto focus ̶
    Environmental requirements Operating temperature(9) -20~50℃
    Protection rating IP67
    Drop resistance(10) 1.5 m×60 times or more, 2.5 m 1.2 m×60 times or more, 2 m 1.5 m×60 times or more, 2.5 m
    Weight(incl. battery) 約308 g approx.438 g approx.298 g
    1. 1. Although the effective number of picture elements is more than 99.99% thanks to high-precision technologies used to manufacture LCDs, allow the possibility of some elements, less than 0.01%, that are missing or permanently turned on
    2. 2. Incl. power key
    3. 3. IEEE802.11a:5.2GHz(W52)、5.3GHz(W53)are for indoor use only
    4. 4. The communication distance shown is a reference value, and it may vary accordingly, depending on the actual environmental conditions. The transmission speed shown is a logical variable only, not the guaranteed value.
    5. 5. The described operating time is a reference figure under regular temperatures and may very depending on usage conditions.
    6. 6. Scanning to wireless communication to screen update to standby = 1:5:1:60. The Vibrator and buzzer are disabled. The wireless function is always enabled, and all other functions are disabled.
    7. 7. Scanning to scan update to standby = 1:30:270. Data is transmitted via a wireless WAN while the screen is displayed.
    8. 8. The NFC function needs to be well tested for readability by using the card that you will actually use.
    9. 9. Zero to 40 degrees Celsius when batteries are being recharged.
    10. 10. Results obtained in a test done by DENSO WAVE at room temperature. They are not meant to be guaranteed values.

    Dimensions

    寸法図
