Product Details

DENSO ADC SC1-QB

SC1-QB Healthcare Scanner

Unmatched in the Industry. The all-new SC1-QB brings a needed breakthrough for health care settings. The smooth surface is designed for ease of wipe-down and will withstand rigorous anti-bacterial cleaning. Lightweight, quick-charging, and powerful, it offers superior performance in any clinical or office setting as well as in restaurants, retail, and other shared environments.

  • 1-D and 2-D barcode scanning
  • Durable yet Featherweight,
  • Scanning and Charging Wirelessly.
  • Shock-absorbing construction with IP65 dust- and water-resistant protection.
  • Smooth, Seamless, Sanitary.
  • Easy to clean with a variety of solutions common to healthcare environments.*



*See recommended Cleaning Maintenance Guides for further information.

Share this product

Description

Key Performance Benefits

Sanitary scanner

Smooth, Seamless, Sanitary.

Say goodbye to crevices, cracks, and screw holes where microbes and pathogens can hide. The smooth surface of the SC1-QB is easy to clean, ideal for day-in-day-out use with chemical disinfectants common to healthcare settings.

Gloved hand holding scanner

Featherweight Ease.

At only 4.5 ounces, the SC1-QB is pleasantly lightweight. Ergonomic contours and a pressure-sensitive (piezoelectric) trigger make scanning a breeze.

Healthcare scanner wireless charging

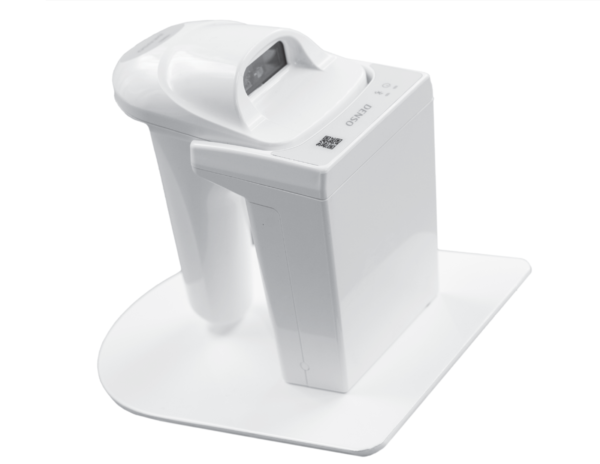

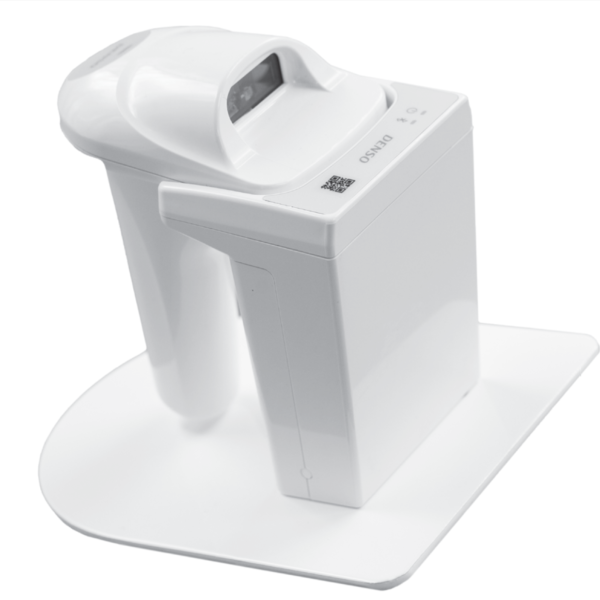

Wireless Charging in 3 Minutes or Less.

Simply set the SC1-QB on its compact, magnetic charging cradle. The scanner’s internal capacitor will fully charge in just three minutes or less—eliminating needless downtime. Need to complete quick work on low power? Get dozens of scans after only 60 seconds of charging. What’s more, the internally capacitor never needs replacement, unlike traditional batteries.

SC1-QB scanner

IP65 Rated Protection.

The SC1-QB scanner is highly resistant to dust and water intrusion, making it a reliable accessory in varying environments and room conditions.

Healthcare scanner laying down

Durable and Dependable.

The SC1-QB is made to withstand the rigors typical of daily use, tested in multiple drops from heights up to 6 feet.

SC1-QB Scanning
Advanced Performance.

Equipped with latest in code-reading technology from DENSO, the SC1-QB ensures swift, accurate data capture, scan after scan after scan. Never worry about cables getting tangled with wireless scanning. SC1-QB comes enabled with Bluetooth 5 (BLE) for added wireless functionality.

Specifications

Dimensions

SC1-QB Scanner image
SC1-QB Charging Stand image

Specifications

Model Number SC1-QB

Scanner

Method Area Scanner
Readable 2D Codes QR Code, SQRC, Micro QR Code, DataMatrix (ECC200), PDF417, MicroPDF417, MaxiCode, Aztec, GS1 Composite
Readable 1D Barcodes EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5, Standard 2 of 5, Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Minimum Resolution 2D Codes 0.127mm
Minimum Resolution 1D Barcodes 0.076mm
PCS Value More than 0.3
Targeting Marker LED
Angle ±50°
Skew Angle 360°
Scanning Confirmation LED Light (blue, green and red) and Sound and Vibration

Communication

Interface Method Bluetooth Core Specification Version 5.0 (BLE)

Power

Power Supply Capacitor Battery (Wireless charging on base, sold separately)
Charging Time Approx. 3 minutes
Operating Time Approx. 30 minutes (1 scan per 5 sec)

Operating Environment

IP Rating IP65
Temperature -20 to 50°C
Humidity 10 to 90% RH (non-condensing)
Illuminance Under 10,000 lux (daylight fluorescent lamp)
Drop Test 2.0m (onto concrete floor) / 0.5m x 2,000 times

Physical Characteristics

Weight Approx. 130g
**All specifications subject to change without notice.

Charging Stand Specifications

Model Number CH-1CW

Scanner

Notification LED Light (blue, green and red)
Interface Bluetooth Specification (BLE 5.0) Low Energy

Power

Power Supply USB Charging (DC 5V)
Battery Two AA rechargeable batteries (Tested for specifications with Eneloop brand 1900mAh batteries.)

Operating Environment

IP Rating IP22
Temperature 0 to 40°C
Humidity 20 to 80% RH (non-condensing)

Physical Characteristics

Weight Approx. 125g without battery
**All specifications subject to change without notice.
