Partner Tech MF-2352

MF-2352

Customer Service Tools Always at Your Fingertips

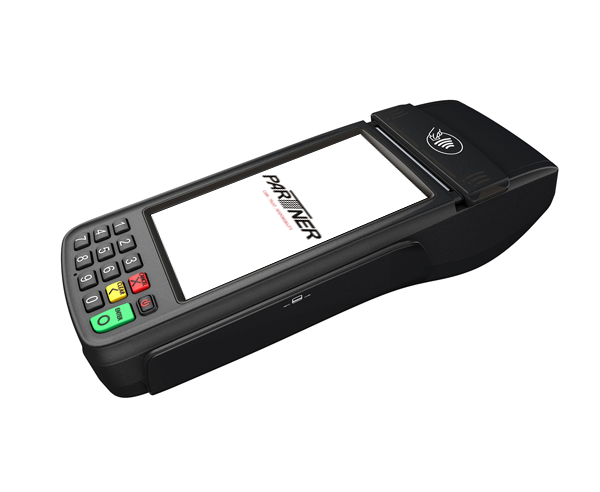

MF-2352 POS and Payment terminal is the enhanced generation of Partner Tech Mobile POS family. It is designed to bring the features and functions of mobility, POS and payment together into one palm-size, compact hand-held terminal.
With its larger LCD screen, touch function, fast thermal printer, and a great number of peripheral options including camera, bar code scanner, biometric reader, rear display and more, MF2352 is made to improve store operation efficiency by a finer touch.

Category: Tag:

Share this product

Description

The MF-2352 Android Mobile POS

Multi-Use Handheld Terminal

Multi-Use Handheld Terminal

MF-2352 Android POS is one of the new generations of M.POS terminal designed to combine traditional features and innovative web services in point-of-sale environments for all kind of business sales and value-added services.
Evolved to Android 5.x operating system, with 5” color touch screen, fast thermal printer, optional camera , and 1D/2D scanner, MF-2352 is undoubtedly an empowering tool to enhance user experience.



  • ARM Cortex-A7 Quad-core 1.1 GHz CPU Platform, supporting Android OS 5.x
  • 5” multi-point capacitor touch panel
  • Rich peripherals, including MSR, IC Card Reader, NFC, Fingerprint Reader, Thermal Printer
  • Replaceable 5200 mAH Li-ion battery allow operating up to 8 hours continuously
  • Support GPS, Fiscal memory, VFD customer display, 8M pixel AF camera, 1D/2D scanner, micro SD, 2/3/4G

Optional

  • 1D/2D barcode reader
  • WWAN
  • GPS
  • VFD Customer Display
  • Fingerprint reader
  • Fiscal Memory
  • VFD Customer Display
  • BM pixel AF Camera

Specifications

  • System Processor ARM Cortex-A7 Quad-Core 1.1 GHz
    Memory LDDR3 : 1GB (Max : 2GB)
    eMMC : 8GB  (Max : 16GB)
    OS Android 5.1
    Display 5 inch, 1280 x 720 Pixels
    Touch Panel 5 inch, Capacitor Touch Panel(Multi point)
    WLAN 802.11 a/b/g/n
    Bluetooth BT4.1 LE
    GPS GPS/GNOLASS/BeiDou
    Audio speaker x 1
    Microphone x 1
    sensor G-sensor
    Light sensor
    Vibration
    Security Processor ARM Cortex-M3
    Key specification 0-9,Function Key;15 keys include power key
    MSR Track 1/2/3, bi-directional
    RFID ISO 14443 Type A/B & ISO 18092 & Mifare I
    IC Card ISO 7816 & PBOC/EMV compliant
    Printer High speed ,Low noise, Low voltage
    Paper Roll Width: 58mm ,Diameter: 40mm
    LED indication RFID indication 4 x LED indictor
    Battery indication 1 x charging indicator

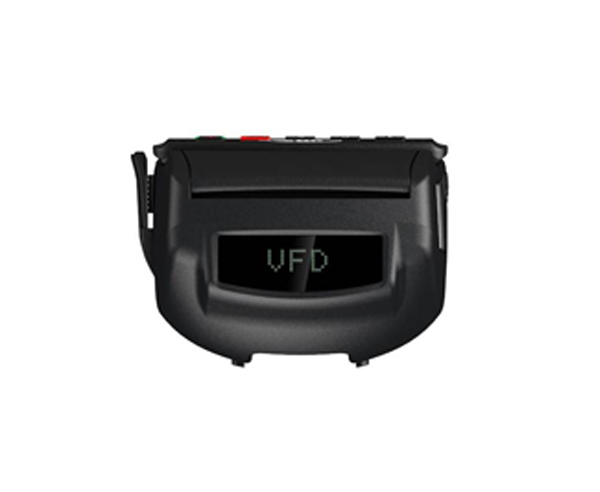

    Peripherals Customer Display HTN,GREY,1/4Duty,1/3Nias,Transflective,12 O’clock
      (Option) Camera AF 8.0 M pixels
    Fingerprint Image sensor 256 x 360 sensor array format
    Scanner 1D laser barcode scanner
    2D image barcode scanner
    Wireless Communication GSM/GPRS/ GSM : EGSM900/DCS1800
    (Option) EDGE CDMA : BC0
    3G WCDMA & TD-SCDMA : Band1/8 & Band34/39
    4G LTE FDD & LTE&TDD : Band1/3/8& Band38/39/40/41
    SIM 1 x SIM card slot
    Power Power Adaptor DC 9V/2A
    Battery 3.7V/5200mAh Li-ion
    Backup Battery CR2450-600mAh
    External I/O USB OTG Micro USB × 1 ,support changer
    RS232 Mini USB x 1
    Audio 3.5mm audio jack × 1
    Expansion slot Micro SD × 1 (max :128G)
    Function Key Scanner Trigger x 1
    Reset x 1
    Power Power Jack x 1
    Internal I/O RS232 x1  for Fiscal device
    I2C x 1 for Fiscal device
    Power DC 3.3V
    DC 5V
    Environment Operating Temp. 0℃– 45℃
    Charging temperature 0℃– 45℃
    Storage Temp.  -20℃–60℃
    Humidity 10% ~ 90%, non-condensing
    Operating time 8 hour
    Standby time 120 hour
    Dimension 240 mm x 90 mm x 70 mm
    Weight 650g
    Certifications Security & Payment 1. PCI PTS 4.x
    2.EMV L1 & L2
    3.Visa paywave
    4.MasterCard paypass
    5.American Express & JCB
    6.PBOC L1 & L2
    7.QPBOC L1 & L2
    8.TQM
    Safety,EMC CE、FCC、BSMI、RoHS
